Characteristics

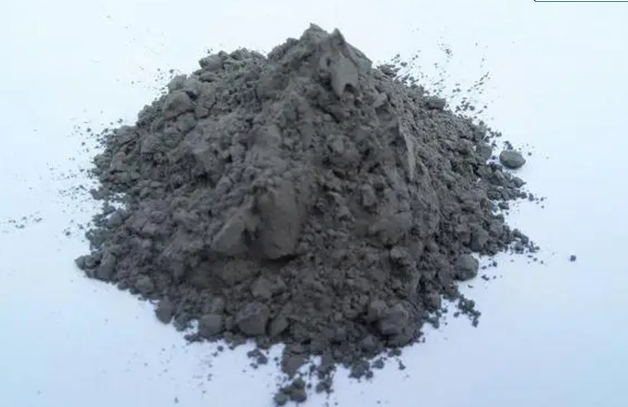

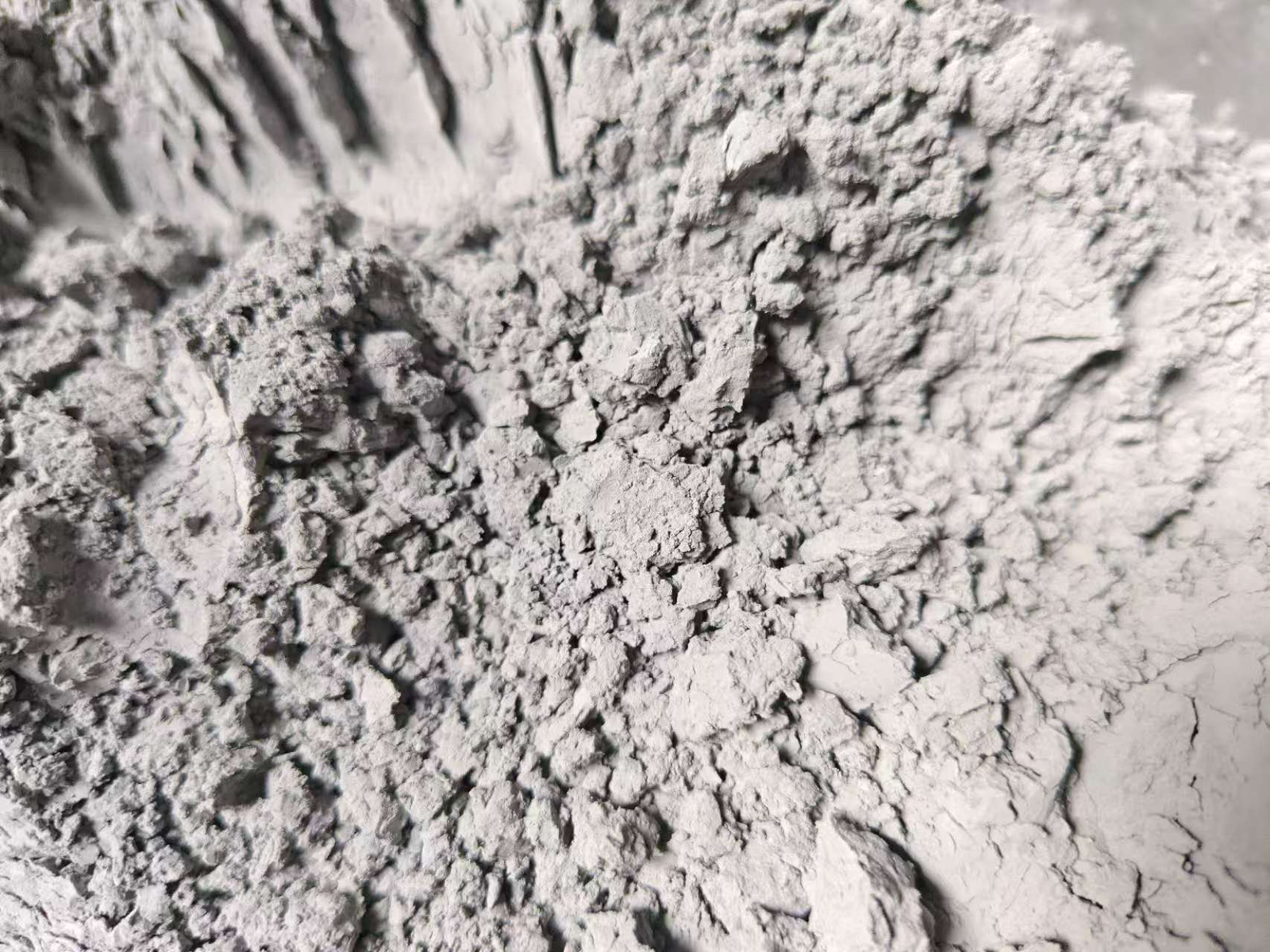

Featuring superior dispersion, slow sedimentation in coatings and extended salt‑fog resistance, flake zinc powder consists of flat platelet‑shaped particles with a high aspect ratio. Compared with conventional spherical zinc dust, its lamellar structure offers both sacrificial cathodic protection and an efficient physical barrier against moisture and oxygen
Application
Daceomet / Geomet technology, Zinc-Cr Coating material,
Powder coating and painting for ships and warships, Automotive parts, Vehicle, Iron tower.
Flake zinc powder for dacromet/geomet coating
| Grade | Average Particle Size D50(um) | Thickness of the zinc flake (um) | Water Covering (min cm²/g±10%) | Bulk Density(g/cm3) |
| Z100 | 17-19 | 0,15-0.4 | ≥3500 | 0.8 |
| Z200 | 11-13 | 0.1-0.3 | ≥5000 | 0.75 |
| Z200A | 9-11 | 0.1-0.2 | ≥6000 | 0.73 |
| Z300 | 4-5 | 0.1-0.2 | ≥8000 | 0.7 |
Zinc flake Powder For Zinc rich paint and coating
| Grade | Average Particle Size D50(um) | Thickness of the zinc flake (um) | Water Covering (min cm²/g±10%) | Bulk Density(g/cm3) |
| H100 | 17-19 | 0.2-0.5 | ≥3000 | 0.85 |
| H200 | 11-13 | 0.15-0.4 | ≥4000 | 0.8 |
| H300 | 4-5 | 0.1-0.3 | ≥7000 | 0.75 |
